Photonic Time Crystal PTC

Photonic Time Crystals (PTCs) are spatially homogeneous media whose electromagnetic susceptibility varies periodically in time, causing temporal reflections and refractions for any wave propagating within the medium.

1. Introduction to Photonic Time Crystals
Photonic time crystals (PTCs) represent a revolutionary concept in the field of photonics, where the refractive index of materials is modulated in time rather than in space. This temporal modulation introduces momentum bandgaps, within which waves can experience exponential amplification, extracting energy from the time modulation itself. Unlike spatial photonic crystals that create energy bandgaps to filter specific frequencies of light, PTCs manipulate the momentum of electromagnetic waves, enabling novel behaviors such as non-resonant light amplification and tunable lasing. This groundbreaking approach offers a new dimension of control over light-matter interactions, with potential applications ranging from quantum optics to advanced photonic devices​ .

2. Materials Enabling Rapid Refractive Index Modulation
One of the key challenges in realizing PTCs at optical frequencies lies in achieving significant and rapid refractive index changes within ultra-short time scales. Conventional materials and nonlinear optics approaches, such as photorefractive effects or thermal nonlinearities, are too slow or weak for PTC implementation. Recent advances in materials science, however, have identified promising candidates, including transparent conducting oxides (TCOs) and phase-change materials, that offer large refractive index modulations in the required femtosecond timescale. These materials, especially those operating near the epsilon-near-zero (ENZ) regime, have shown the potential to achieve the sharp transitions needed for PTCs, marking significant progress toward practical implementations .

3. Momentum Bandgaps and Non-Resonant Amplification
At the core of PTCs is the formation of momentum bandgaps, regions in momentum space where no propagating wave solutions exist. Waves entering these bandgaps are exponentially amplified, drawing energy from the time modulation of the material. This effect, unlike traditional resonant amplification in optical systems, does not require phase matching or specific resonant conditions, allowing for non-resonant gain. This makes PTCs highly versatile for applications that require wide-band amplification, and it opens the door to innovations such as thresholdless lasing and the amplification of phonons, further extending the possibilities of this technology .

4. Experimental Demonstrations and Practical Implications
Recent experimental demonstrations of PTCs have shown their practical viability, particularly in the microwave regime. For instance, researchers have observed time-reflection and broadband frequency translation in transmission-line metamaterials. These experiments prove the ability of PTCs to manipulate waves not just in space but also in time, with implications for photon control in both classical and quantum regimes. The concept of a temporal Fabry-Perot cavity, formed by combining multiple time interfaces, demonstrates the potential for extreme wave manipulation, laying the groundwork for future developments in time-metamaterials and Floquet systems .

5. Future Prospects of Photonic Time Crystals
The rapid advancements in both the theoretical and experimental understanding of PTCs highlight their potential to transform multiple fields of photonics. From enabling non-resonant amplification to supporting quantum light-matter interactions, PTCs provide new ways to control light across space and time. As material science continues to push the boundaries of what is possible in terms of modulation speed and depth, we can expect further breakthroughs in the realization of optical PTCs. With continued exploration of novel materials and techniques to overcome power and speed constraints, PTCs are poised to unlock new frontiers in photonic applications .

Temporal Modulation

The defining feature of PTCs is their time-dependent electromagnetic susceptibility. This means that the material’s response to an electromagnetic wave (such as its refractive index or dielectric constant) changes periodically over time. These temporal changes are analogous to the periodic spatial variations seen in regular photonic crystals but occur in the time domain.

Homogeneous in Space

Unlike conventional photonic crystals, which are made of different materials or structures arranged in a periodic pattern in space (such as a grid of rods or layers of different materials), PTCs are spatially uniform. The periodicity is entirely in the time domain, meaning the material looks the same at any point in space at a given time but changes its properties as time progresses.

Photon Phonon Crystals

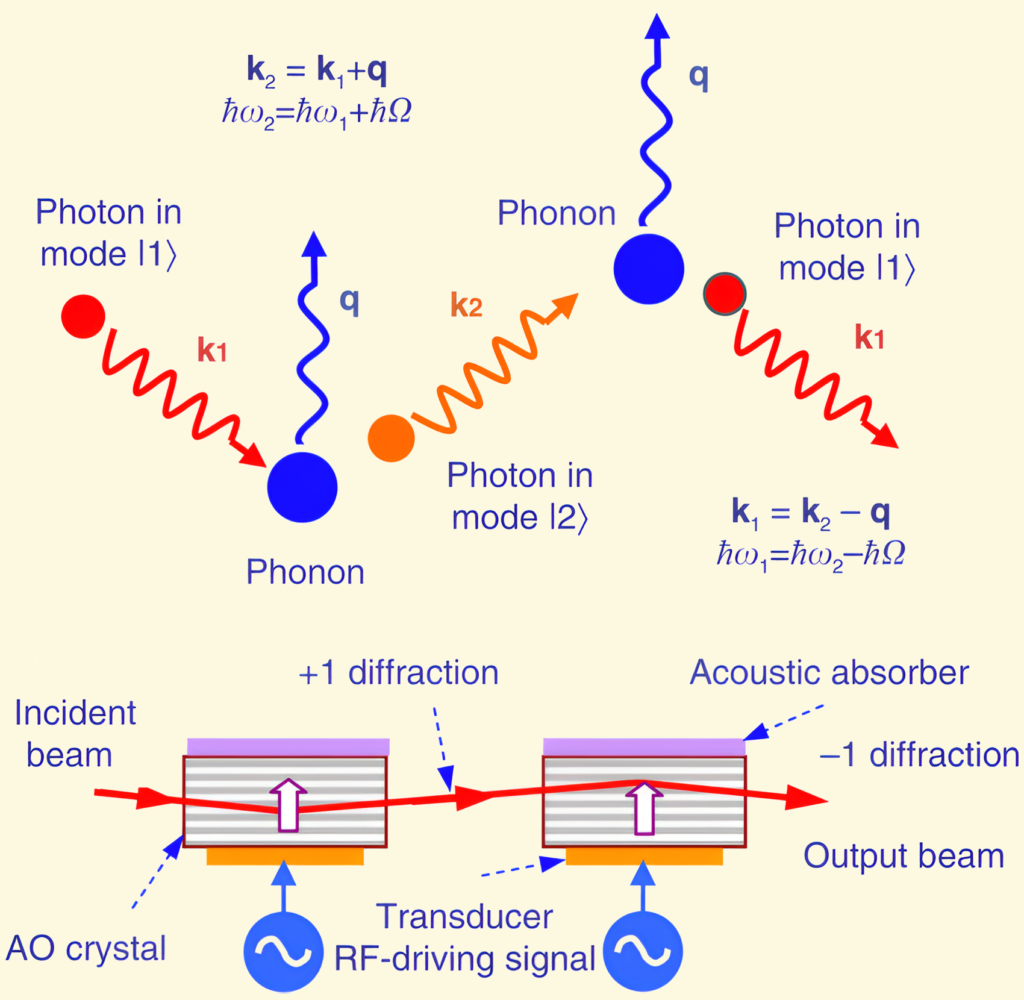

In a phonon-photon time crystal, both light (photons) and lattice vibrations (phonons) are influenced by a time-periodic structure. The interactions between photons and phonons can lead to non-reciprocal effects and other complex behaviors, as described in the document regarding the photonic Aharonov–Bohm effect, where both phonons and photons exhibit time-crystal-like behavior .

Phonon Photon Time Crystals

Longitudinal Optical Phonons in Photonic Time Crystals
Photonic time crystals also hold potential for amplifying longitudinal optical phonons, as demonstrated in Lorentzian medium-based dispersive PTCs. A stationary charge embedded in such PTCs can excite these phonons through the static polarization field it induces. The PTCs can develop an infinite momentum bandgap across the entire wave vector space, enabling exponential amplification of the longitudinal modes. This amplification can be achieved with minimal refractive index modulation, making it a practical method for exploring momentum bandgap phenomena in realistic optical experiments. The unique interaction between stationary charges and longitudinal phonons in PTCs extends the range of waves that can be manipulated and offers new opportunities in time-varying photonics​ .
